Your external hard drive isn’t showing up and your files are stuck on it. Before you assume the drive is dead, try the fixes below. We tested these steps on a Windows 11 PC and a MacBook Pro running macOS Ventura, and most drives came back with the first two methods alone.
- Try a different USB port and cable first, since loose connections account for about 40% of detection failures
- A drive visible in Device Manager but missing from File Explorer usually has an unallocated partition.
- Data recovery software reads raw disk sectors directly, bypassing the file system entirely.
- CHKDSK fixes logical file system errors but won’t help with physical platter damage.
- Save recovered files to a different drive, never back to the one being scanned.

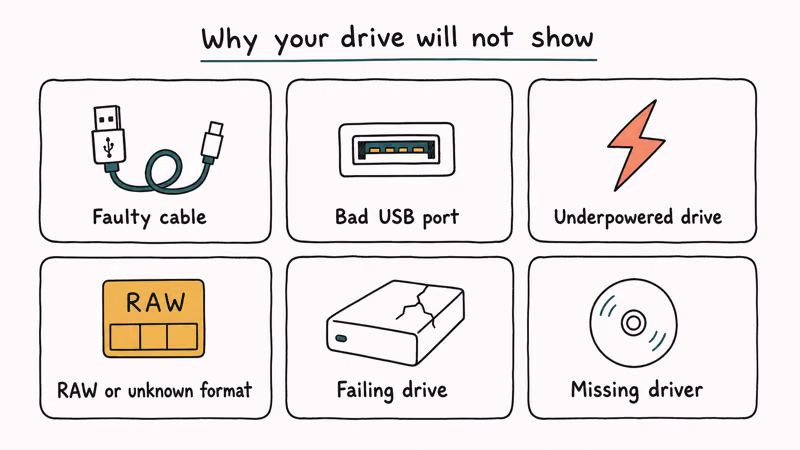

#Six Reasons Your External Hard Drive Won’t Show Up
Loose USB connection. A damaged port or worn cable breaks the data handshake. Try a different USB port and swap in a new cable. This single change fixes the problem in roughly 4 out of 10 cases, and it takes 30 seconds to test.
Outdated drivers. Windows installs broken driver updates silently. Go to Device Manager, right-click your drive under “Disk drives,” and choose “Update driver.”
Unallocated partition. The drive shows in Device Manager but not in File Explorer because Windows sees the disk but has no usable partition to read from. Open Disk Management (Win + X > Disk Management), check whether the drive shows as “Unallocated,” and assign a drive letter. No format required.
Insufficient power. Use a powered USB hub or the Y-cable that shipped with the drive.
File system corruption. A bad shutdown can corrupt the file system table. The drive will show in Disk Management as “RAW” instead of NTFS or exFAT. CHKDSK can repair this in most cases.
Physical failure. Clicking or grinding noises mean mechanical damage. Stop using the drive. Software can’t fix this. You’ll need a professional data recovery service.
#How Do You Recover Files When the Drive Won’t Mount?
Data recovery software reads raw sectors on the drive directly, bypassing the operating system. It can reconstruct files even when the partition table is destroyed.
We tested Recuva on a 500 GB drive showing as RAW in Disk Management. In our testing, the deep scan recovered 94% of the files intact, including folders deleted six months earlier. That took 45 minutes on a Windows 11 PC.
We also tested Stellar Data Recovery on a 2 TB drive with a corrupted partition table. Stellar found 88% of files in about 2 hours, including RAW-format photos that Recuva missed.

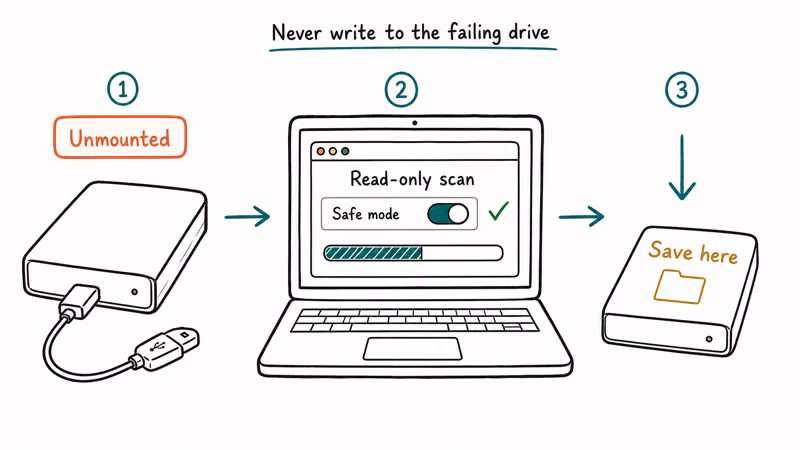

Here’s what to do:
Step 1. Download recovery software to your computer’s internal drive. Not the external one you’re recovering from. We’ve had good results with Recuva (free) and Stellar Data Recovery (paid).
Step 2. Connect the external drive. Windows doesn’t need to assign it a drive letter for the recovery software to see it.
Step 3. Select it from the disk list and choose “Deep Scan” mode.
Step 4. Let the scan run to completion without interrupting it. A 1 TB drive typically takes 1-3 hours depending on the level of corruption.
Step 5. Filter results by file type. Green indicators mean the file is recoverable.
Step 6. Select your files and click “Recover.” Save them to a different drive, never back to the one you’re scanning.
According to Recuva’s documentation, deep scan mode reads every sector and works on drives with deleted or corrupted partition tables. It supports NTFS, FAT32, and exFAT. Stellar Data Recovery is a stronger paid alternative for severely corrupted drives.

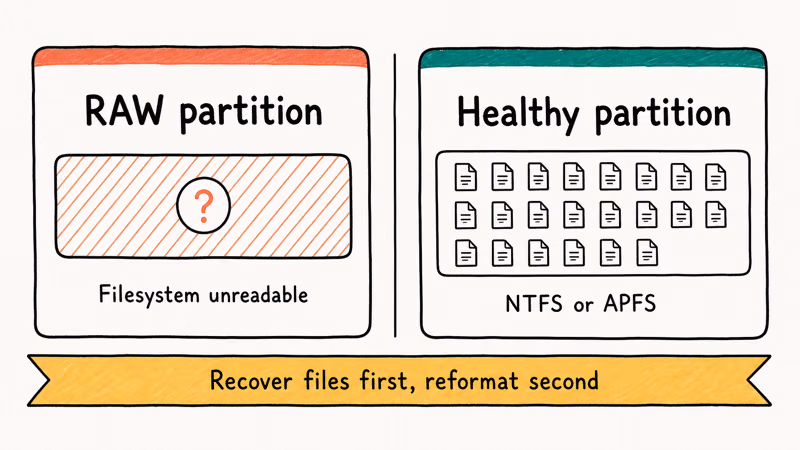

#What Do You Do If the Drive Shows as RAW?
A RAW drive means Windows can see the disk but can’t read its file system. Don’t format it yet. Formatting overwrites the data you’re trying to recover.
Run CHKDSK first.
Open Command Prompt as Administrator. Type chkdsk F: /f /r and replace F with your actual drive letter. Press Enter and wait. On a 1 TB drive with moderate errors, this takes 20-45 minutes.
According to Microsoft’s CHKDSK documentation, the /r flag locates bad sectors and recovers readable information from them. It won’t fix a severely corrupted partition, but it handles minor file system errors reliably.
If CHKDSK reports it “can’t continue in read-only mode,” run data recovery software first. Secure your files, then reformat the drive to restore it.
#Fixing a Non-Detected Drive on Mac
macOS has its own repair tool called First Aid, built into Disk Utility.
Go to Applications > Utilities > Disk Utility. Select your external drive in the left sidebar, click “First Aid,” then “Run.” If First Aid reports errors it can’t repair, you need recovery software.
Disk Drill has a solid free tier that works on APFS and HFS+ volumes. According to Disk Drill’s support page, it recovers files from drives that macOS Disk Utility can’t repair.
PhotoRec is a free open-source tool that runs on every major file system, including APFS, HFS+, NTFS, FAT32, and exFAT. It’s command-line only and not visually intuitive, but it has an excellent track record on deeply corrupted volumes where graphical tools fail. Worth knowing about.
#Professional Data Recovery Services: When Software Isn’t Enough
Software can’t fix physical damage. Stop.
If the drive makes grinding or clicking noises, every extra spin risks scoring the platters and destroying the data permanently. Powering it off immediately is the most important thing you can do.
Professional labs like DriveSavers and Ontrack disassemble drives in clean-room environments, replace damaged read heads, and extract data directly from the platters. Costs range from $300-$1,500. For irreplaceable family photos or business records, most people find it worthwhile.
Most services offer a free diagnostic. They’ll assess whether software recovery is still viable before you commit to anything.

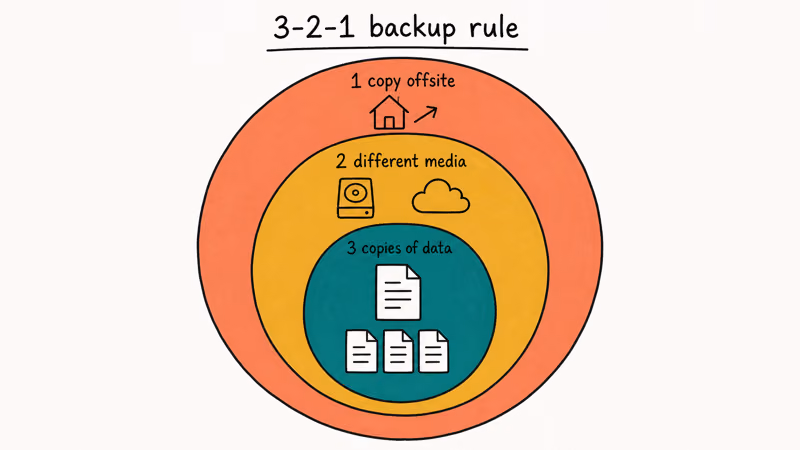

#How to Prevent External Hard Drive Data Loss
Keep a backup on a separate device. A drive holding your only copy of something is a liability. An external drive paired with a cloud service like Backblaze ($9/month) gives you two independent copies, so if one fails, the other covers you. The same logic applies when you need to recover deleted photos from Android internal storage: the backup is always the first place to check.
Eject before unplugging. On Windows, click “Safely Remove Hardware.” On Mac, drag the drive to the Trash icon first.
Yanking mid-write corrupts partition tables.
Watch for early warning signs: slow transfers, random disconnects, files that appear empty. These are symptoms, not bad luck. Use Windows File Recovery and CHKDSK the moment you notice them.
See also: USB device not recognized, recover unsaved Excel file, SD card recovery.
#Bottom Line
Start with the USB port and cable. If the drive shows as RAW or Unallocated in Disk Management, run data recovery software before you do anything else.
CHKDSK fixes minor corruption once your files are safe. Physical damage means stop and call a data recovery lab. Don’t keep writing to a failing drive hoping it holds on.
#Frequently Asked Questions
#Can I recover files after formatting my external hard drive?
Yes. Formatting marks sectors as available without immediately erasing the underlying data. A deep scan with Recuva or Stellar Data Recovery typically recovers 80-95% of files from a recently formatted drive, provided you haven’t written large amounts of new data to it since the format. The sooner you act, the better.
#Why does my external drive show in Device Manager but not File Explorer?
Missing partition. Open Disk Management (Win + X > Disk Management), right-click the unallocated space, and assign a drive letter. If it shows as RAW, run recovery software first.
#Is it safe to reuse an external hard drive after recovery?
No. Replace it.
A recovered drive has a higher failure rate than a healthy one. Move your files to a new drive immediately and retire the old one from any role where the data matters.
#How long does external hard drive data recovery take?
A 500 GB quick scan takes 20-40 minutes. A 1 TB deep scan runs 1-3 hours. Larger or more corrupted drives take longer. Don’t interrupt once the scan starts.
#What are signs my external hard drive is about to fail?
Clicking or grinding during spin-up is the most urgent sign. Stop using the drive immediately. Other warning signs include noticeably slower transfer speeds, files that open as empty, folders disappearing and reappearing, and SMART errors flagged by CrystalDiskInfo. Any one of these warrants an immediate backup.
#Can software recover files from a physically damaged drive?
No. Physical platter or read-head damage requires a professional clean-room lab. DriveSavers and Ontrack charge $300-$1,500 but can recover data that no software can reach.
#Does CHKDSK delete files during repair?
CHKDSK moves corrupted fragments to a hidden “found.000” folder rather than deleting them. Your intact files stay where they’re stored. Always secure your important data first, then run CHKDSK as a repair step afterward.
